LED Wall Pack Housing MLT-WPH-BM-II

LED wall pack housing fixture MLT-WPH-BM-II

LED wall pack housing fixture MLT-WPH-BM-II

LED wall pack housing fixture MLT-WPH-BM-II

Brief Introduction

This Ribbon-free LED wall pack housing fixture MLT-WPH-BM-II is the medium size wall-mounted housing which is originally designed for LED light engine with die-casting aluminum heat sink on the back. There is a smaller one named MLT-WPH-BS-II with the similar design in this series. With the latest LED lighting technology and protogenetic LED wall pack housing, the luminous flux output is much more, the efficacy is much higher and the heat dissipation is much better for a long time lifespan and less maintenance. Durable powder coating finish can withstand extreme climate changes without cracking, peeling or fading.

Feature

  • Ribbon free design with heatsink inside.
  • Durable aluminum die-casting housing for heavy-duty outdoor lighting applications.
  • Plastic electrostatic spraying to resist corrosion, chipping and fading.
  • High light transmittance heat and shock-resistant borosilicate glass prismatic diffuser.
  • Silicon foam gaskets.
  • Multiple knockouts for mounting convenience.
  • 1/2″ conduit openings with plugs for conduit mounting.
  • IP65 rated, protect from all dust and harsh weather.
  • Standard bronze finish.
  • Supports Semi Cut-off Mode
  • Easy to assemble, install and maintain.

Mechanical Dimensions

LED Wall Pack Housing MLT-WPH-BS-II Mechanical Dimensions

Parameter

Model No. LED Wall Pack Housing MLT-WPH-BM-II
Dimension of Housing 46cm(L)*23cm(W)*21.50cm(H)
Fixture Material Die-casting Aluminum
Surface Finish Color Bronze or Customized color
Material of Diffuser Borosilicate Prismatic Glass
Mounting Type Wall Mount
Aluminum Substrate Mounting Size 340mm(L)*155mm(W)
Driver Box Dimension 340mm(L)*115mm(W)*45mm(H)
Max Power 90W-120W
IP Rating IP65

Pictures

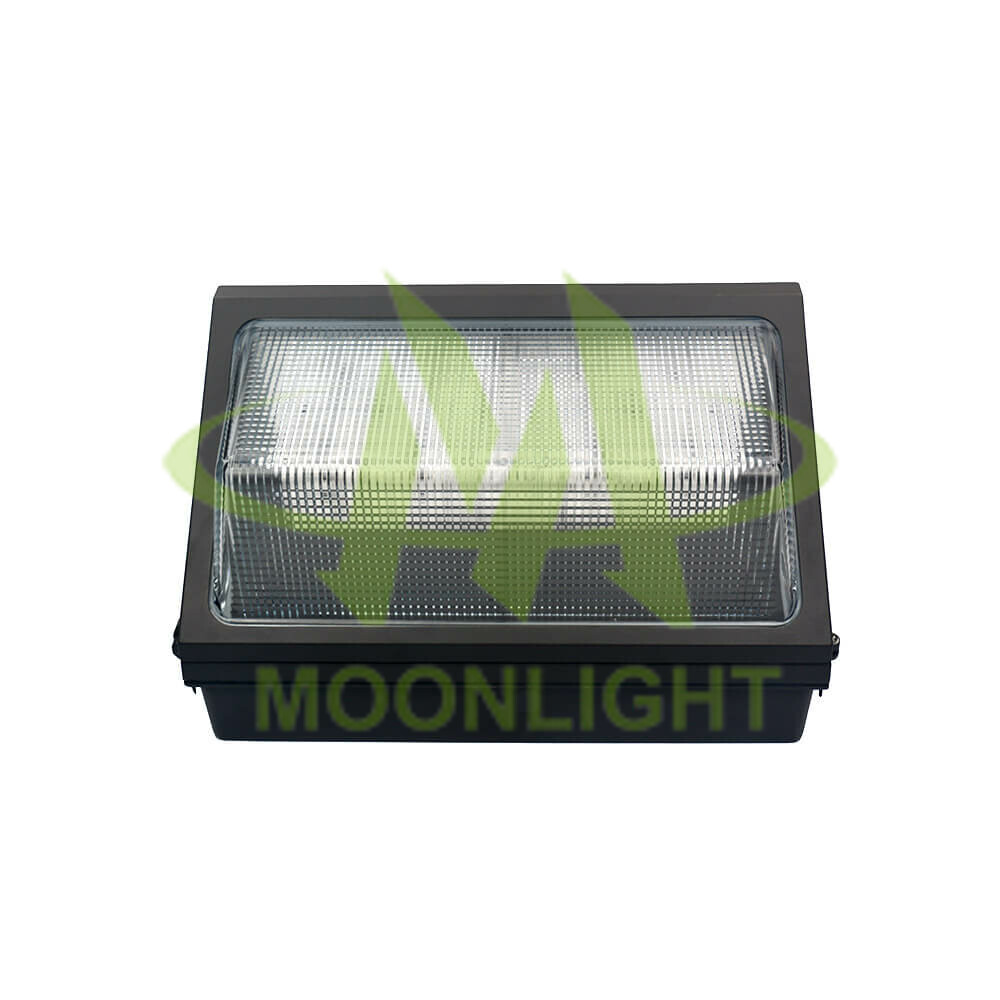

LED Wall Pack Housing MLT-WPH-BM-II Front View
LED Wall Pack Housing MLT-WPH-BM-II Front View

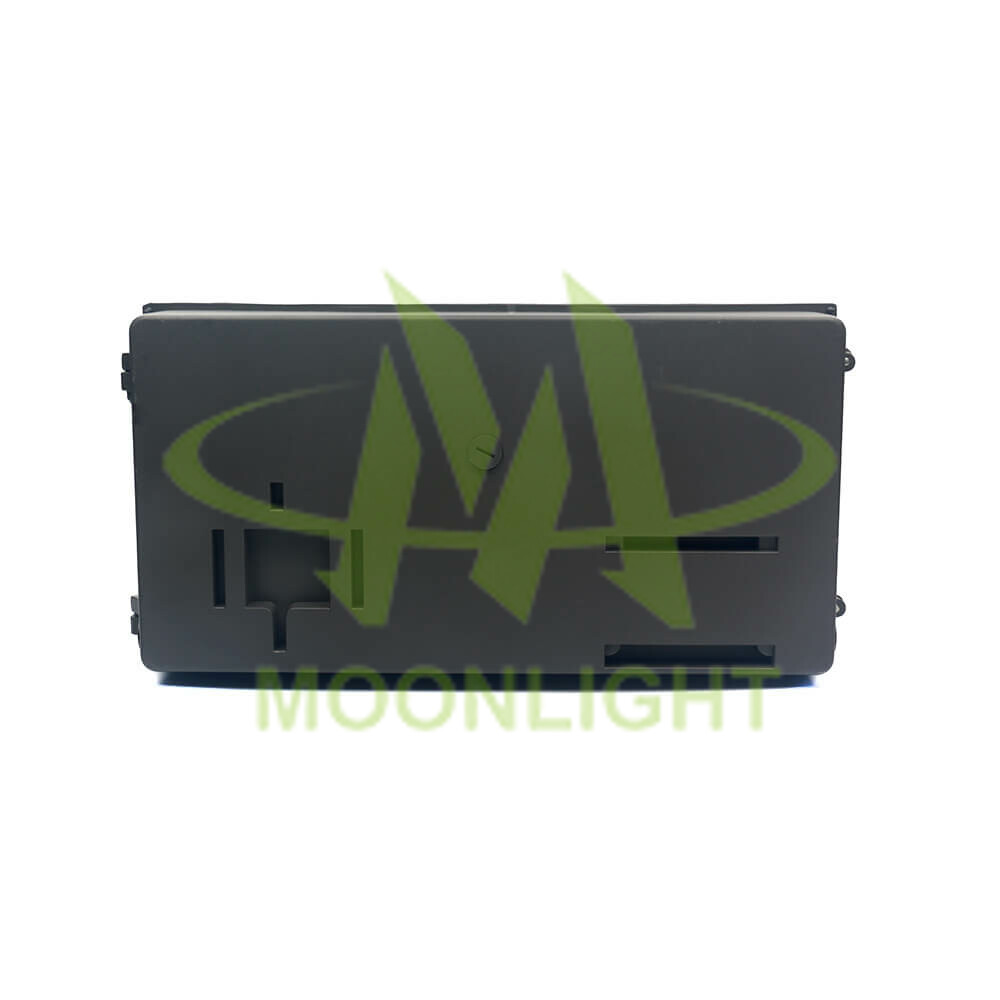

LED Wall Pack Housing MLT-WPH-BM-II Back View
LED Wall Pack Housing MLT-WPH-BM-II Back View

Packing Information

Net Weight 6.02kg/PCS
Gross weight 6.64kg/Carton
Quantity 1PCS/ carton
Carton Size 50cm(L)*29cm(W)*29..5cm(H)

Application

The ribbon-free LED wall pack housing from Moonlight is ideal for wall-mounted doorway and pathway LED wall pack lighting fixture in a variety of lighting applications. LED wall pack are typically applied as wall-mounted security lighting, commercial lighting that are installed on the sides of buildings, warehouse, parking garages, building walkways, pedestrian walkways, and other places around commercial buildings.
