LED Street Light Housing MLT-SLH-DS-II

Street Light Case MLT-SLH-DS-II

LED Street Light Housing MLT-SLH-DS-II

Street Light Case MLT-SLH-DS-II

Brief Introduction

This street light case MLT-SLH-DS-II is the small size of SMD LED street light housing fixture from Moonlight LED street light D series. In this LED street light case family, there are other two models, MLT-SLH-DXS-II and MLT-SLH-DM-II. Modern design, precision die-casting molded and superior corrosion resistant coating finish housing with standard twist lock photocell mounting platform, make this LED street light housing can be used for variety of LED roadway lighting applications.

Data Sheet

Feature

  • Durable aluminum alloy die-casting LED street light case for heavy-duty outdoor lighting applications.
  • Casting-integral heat sink with fins increased air flow velocity providing maximum passive thermal management.
  • Easy drainage fins system.
  • Separate LED light engine and driver box for easy maintenance.
  • Tool-less design for replace the LED driver without any tool.
  • Large driver box complies with Meanwelll HVG series drivers.
  • Both cover and bottom of the driver box have the GND bosses for security.
  • Plastic electrostatic spraying to resist corrosion, chipping and fading.
  • Adjustable knuckle slip fitter with SUS304 stainless steel hardware secures fixture to pole arm.
  • 5mm high light transmittance tempered glass diffuser.
  • Silicon gaskets.
  • SUS304 stainless steel bolts and clips for fastening
  • Standard S6000 socket and twist lock photocell mounting platform for lighting control.
  • Quick disconnection terminal block mounting platform for disconnect the power supply for linemen handling security.
  • IP66 rated, protect from all dust and harsh weather.
  • Standard Gray finish.
  • Easy to assemble, install and linemen friendly maintain.

Mechanical Dimensions

Street Light Case MLT-SLH-DS-II Mechanical Dimensions

Parameter

Model No. LED Street Light Housing MLT-SLH-DS-II
Dimension of Housing 54.6cm(L)*29.5cm(W)*24.3cm(H)
Fixture Material Die-casting Aluminum Alloy
Die-casting Aluminum Alloy Weight 4100g
Surface Finish Color Gray or Customized color
Material of Diffuser High Transmittance Tempered glass
Effective MCPCB Mounting Size 252mm(L)*222mm(W)
Compatible Lenses 12PCS 50mm*50mm Lenses
Recommended LED Power 60W to 120W
Driver Box Dimension 260mm(L)*85mm(W)*65mm(H)
Pole Mounting Accommodates up to Φ65mm pipe
Adjustable Slip Fitter -15°to +15°
Standard Photocell Optional
Quick Disconnection Terminal Block Optional
IP Rating IP66

Pictures

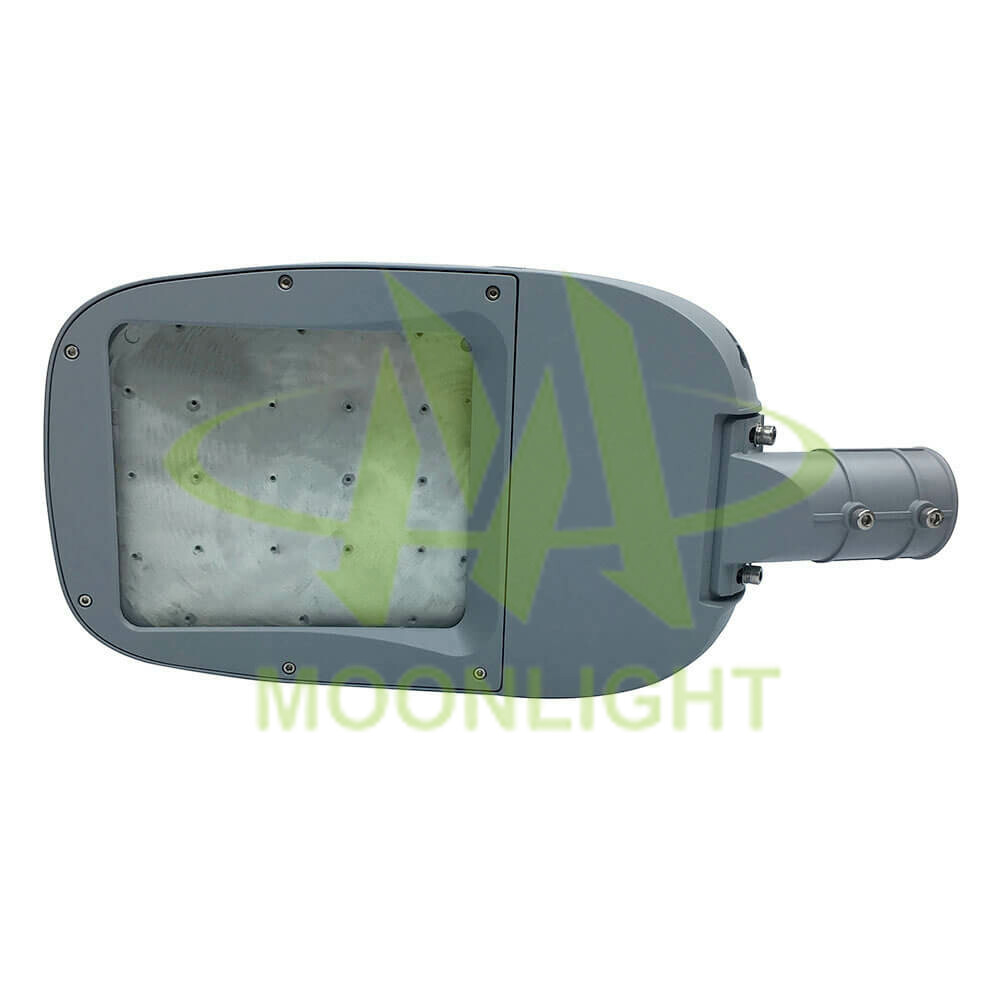

Street Light Case MLT-SLH-DS-II Front View
LED Street Light Housing MLT-SLH-DS-II Front View

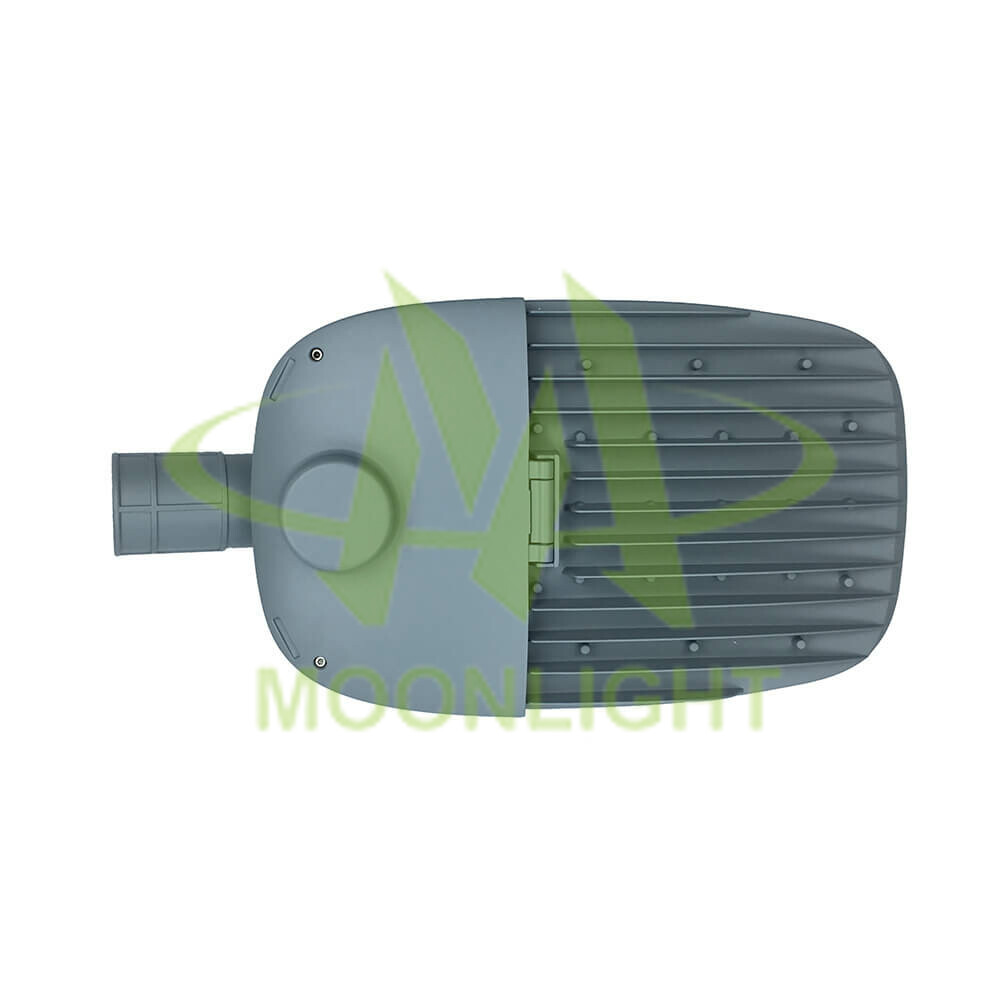

Street Light Case MLT-SLH-DS-II Back View
LED Street Light Housing MLT-SLH-DS-II Back View

Packing Information

Net Weight 5.00kg/PCS
Gross weight 6.08kg/carton
Quantity 1PCS/ carton
Carton Size 63.5cm(L)*33.5cm(W)*19.5cm(H)

Application

This heavy-duty, modern design and cost-effective street light case fixture is typically used as 60W-120W LED street lighting fixture. LED street lighting is used extensively in urban settings, along small town downtown main streets, in residential neighborhoods, in commercial districts, public squares, in industrial parks, at interstate highway interchanges, bridges, and rural intersections.
