LED Street Light Housing MLT-SLH-BS-II

LED Street Lights Housing MLT-SLH-BS-II

LED Street Light Housing MLT-SLH-BS-II

LED Street Lights Housing MLT-SLH-BS-II

Brief Introduction

This LED street lights housing fixture MLT-SLH-BS-II is the small size of SMD LED street light housing fixture from Moonlight LED street light B series. In this aluminum cast housing family, there are other two models, MLT-SLH-BM-II and MLT-SLH-BL-II. Modern design, precision die-casting molded and superior corrosion resistant coating finish housing with standard NEMA twist lock photocell mounting platform, make this housing can be used for variety of LED roadway lighting applications.

Data Sheet

Feature

  • Durable aluminum alloy die-casting LED street lights housing for heavy-duty outdoor lighting applications.
  • Casting-integral heat sink with fins increased air flow velocity providing maximum passive thermal management.
  • Easy drainage fins system.
  • Separate LED light engine and driver box for easy maintenance.
  • Tool-less design for replace the LED driver without any tool.
  • Large driver box complies with Meanwelll HVG series drivers.
  • Both cover and bottom of the driver box have the GND bosses for security.
  • Plastic electrostatic spraying to resist corrosion, chipping and fading.
  • Adjustable knuckle slip fitter with SUS304 stainless steel hardware secures fixture to pole arm.
  • 5mm high light transmittance tempered glass diffuser.
  • Silicon gaskets.
  • SUS304 stainless steel bolts and clips for fastening
  • Standard S6000 socket and twist lock photocell mounting platform for lighting control.
  • IP66 rated, protect from all dust and harsh weather.
  • Standard Gray finish.
  • Easy to assemble, install and linemen friendly maintain.

Mechanical Dimensions

LED Street Lights Housing MLT-SLH-BS-II Mechanical Dimensions

Parameter

Model No. LED Street Lights Housing MLT-SLH-BS-II
Dimension of Housing 71cm(L)*25cm(W)*9.6cm(H)
Fixture Material Die-casting Aluminum Alloy
Surface Finish Color Gray or Customized color
Material of Diffuser High Transmittance Tempered glass
Effective MCPCB Mounting Size 340mm(L)*230mm(W)
Recommended LED Power 60W to 120W
Driver Box Dimension 222mm(L)*110mm(W)*90mm(H)
Pole Mounting Accommodates up to Φ65mm pipe
Adjustable Slip Fitter -90°to +90°
Standard Photocell Optional
IP Rating IP66

Pictures

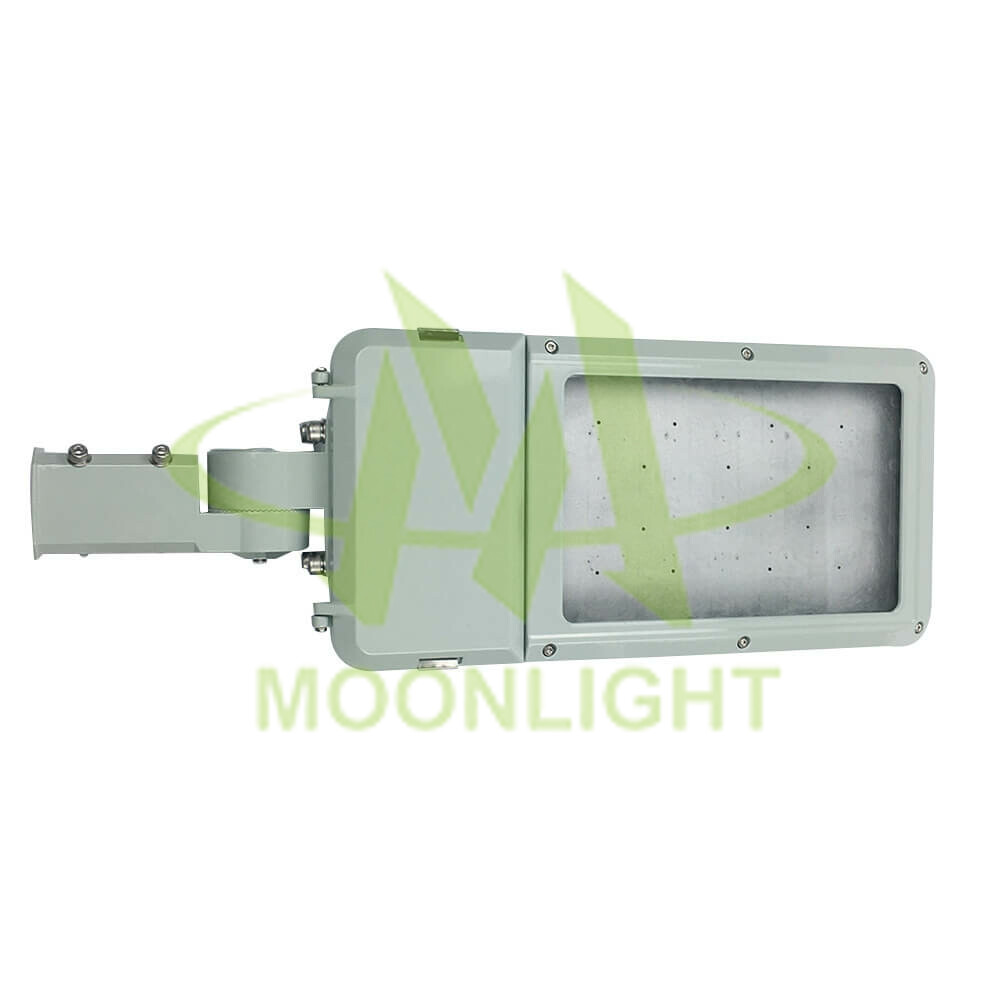

LED Street Lights Housing MLT-SLH-BS-II Front View
LED Street Light Housing MLT-SLH-BS-II Front View

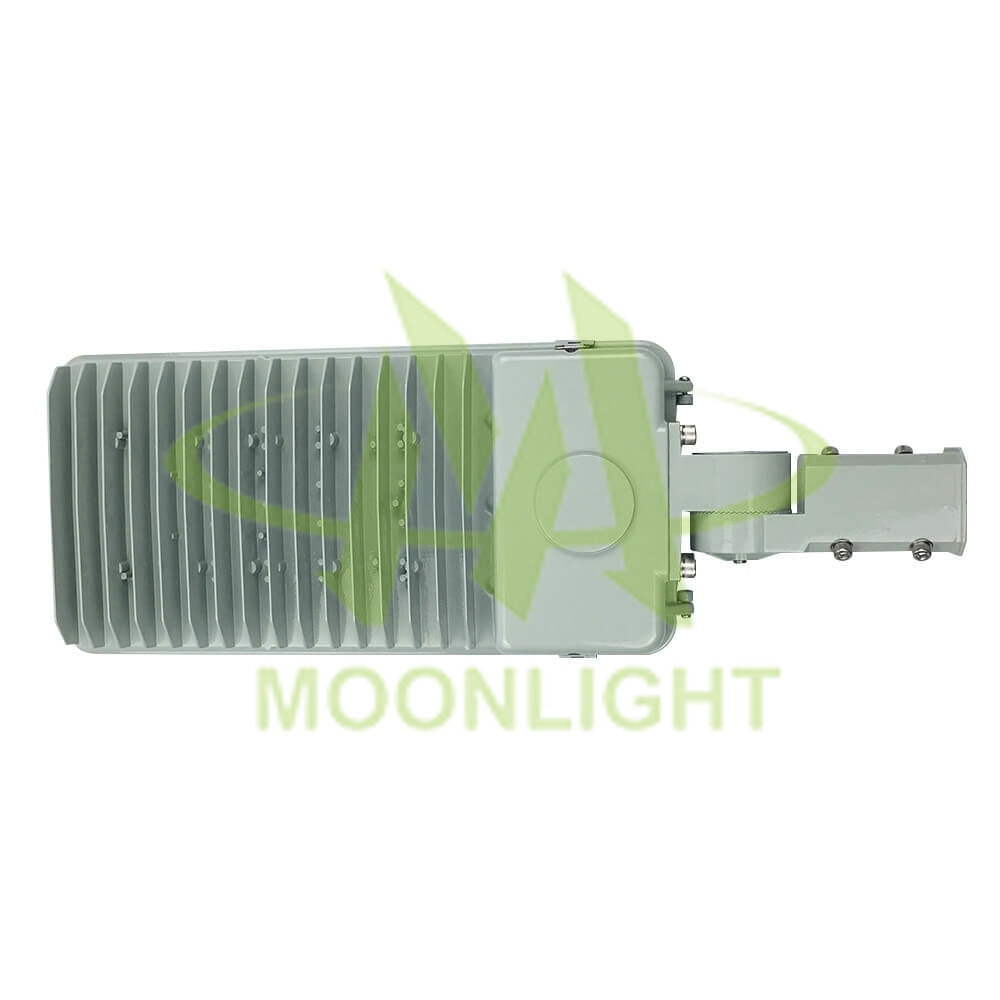

LED Street Lights Housing MLT-SLH-BS-II Back View
LED Street Light Housing MLT-SLH-BS-II Back View

Packing Information

Net Weight 5.80kg/PCS
Gross weight 6.60kg/carton
Quantity 1PCS/ carton
Carton Size 76cm(L)* 30cm(W)*14cm(H)

Application

This heavy-duty, modern design and cost-effective LED street lights housing fixture is typically used as 30W-80W LED street lighting fixture. LED street lighting is used extensively in urban settings, along small town downtown main streets, in residential neighborhoods, in commercial districts, public squares, in industrial parks, at interstate highway interchanges, bridges, and rural intersections.
