LED Street Light Housing MLT-SLH-JM-II

LED Street Light Housing MLT-SLH-JM-II

LED Street Light Housing MLT-SLH-JM-II

LED Street Light Housing MLT-SLH-JM-II

Brief Introduction

This LED module street light housing fixture MLT-SLH-JM-II is the medium size of LED module street light housing fixture from Moonlight LED street light J series. Modern uniformed LED modules integrated with heatsink design inside at the back as the front cover, precision molded ribbon-free die-casting back cover with NEMA photocell mounting platform, superior corrosion resistant coating finish, make this housing can be used for variety of LED roadway lighting applications.

Feature

  • Durable aluminum alloy die-casting for heavy-duty outdoor lighting applications.
  • Individual and easy maintenance LED street light modules.
  • Integrated heatsink for excellent thermal management.
  • Ribbon-free die-casting back cover keeps the inside LED modules and heatsink away from dirt and leaf.
  • Twist lock photocell-mounting platform for smart control.
  • Tool-less design and Linemen friendly.
  • Plastic electrostatic spraying to resist corrosion, chipping and fading.
  • 4 bolts with steel hardware secures fixture to pole arm.
  • High light transmittance PC lenses as diffuser.
  • Silicon gaskets.
  • Steel bolts for fastening
  • IP65 rated, protect from all dust and harsh weather.
  • Standard Gray finish.
  • Easy to assemble, install and maintain.

Mechanical Dimensions

LED Street Light Housing MLT-SLH-JM-II

Parameter

Model No. LED Street Light Housing MLT-SLH-JM-II
Dimension of Housing 68.6cm(L)*32.6cm(W)*18.3cm(H)
Fixture Material Precision molded die-casting housing
Surface Finish Color Gray or Customized color
Material of Diffuser High Transmittance PC lenses
Compatibility LEDs Lumileds 3030 or similar
Lens size 220mm(L)*67mm(W)
Lenses Degree 40°×140°
Recommended LED Power 90W to 120W
Driver Box Dimension 200mm(L)*45mm(W)*70mm(H)
Pole Mounting Accommodates up to Φ65mm pipe
Adjustable Slip Fitter Not Available
Standard Photocell Available
IP Rating IP65

Pictures

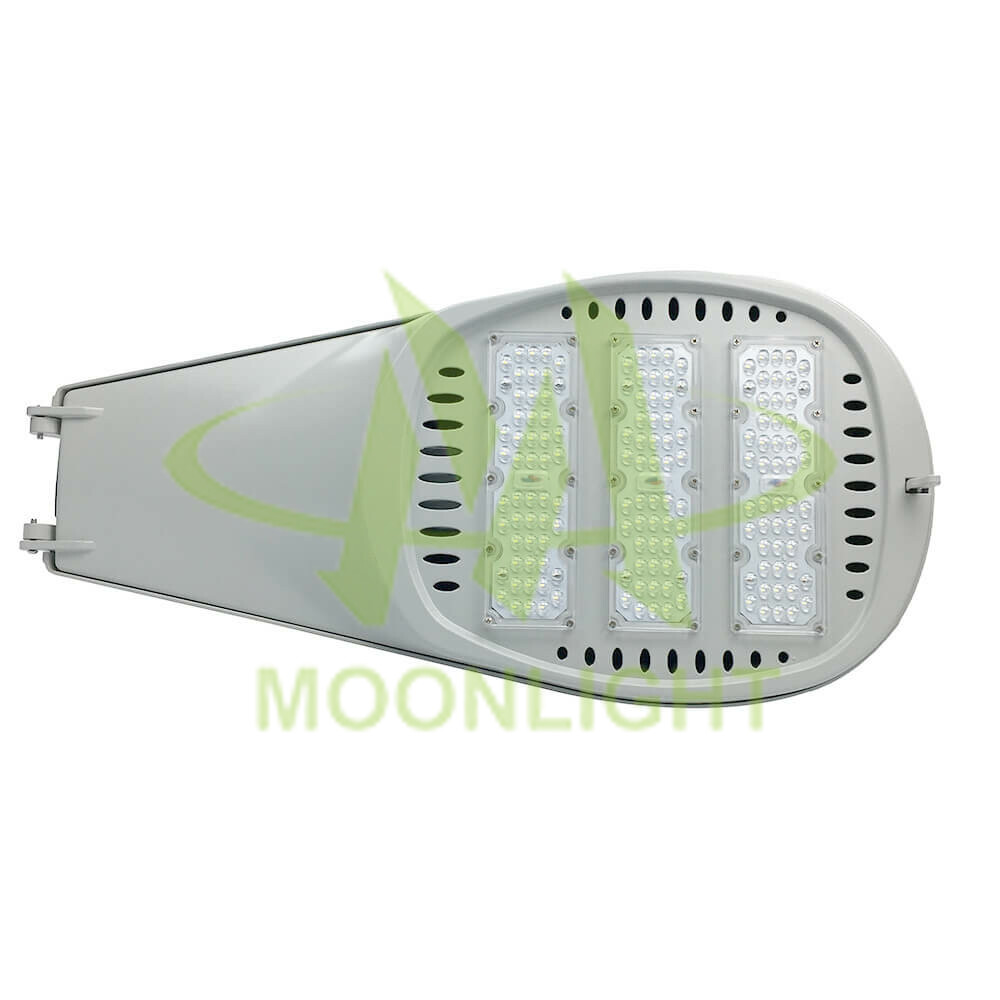

LED Street Light Housing MLT-SLH-JM-II Front View
LED Street Light Housing MLT-SLH-JM-II Front View

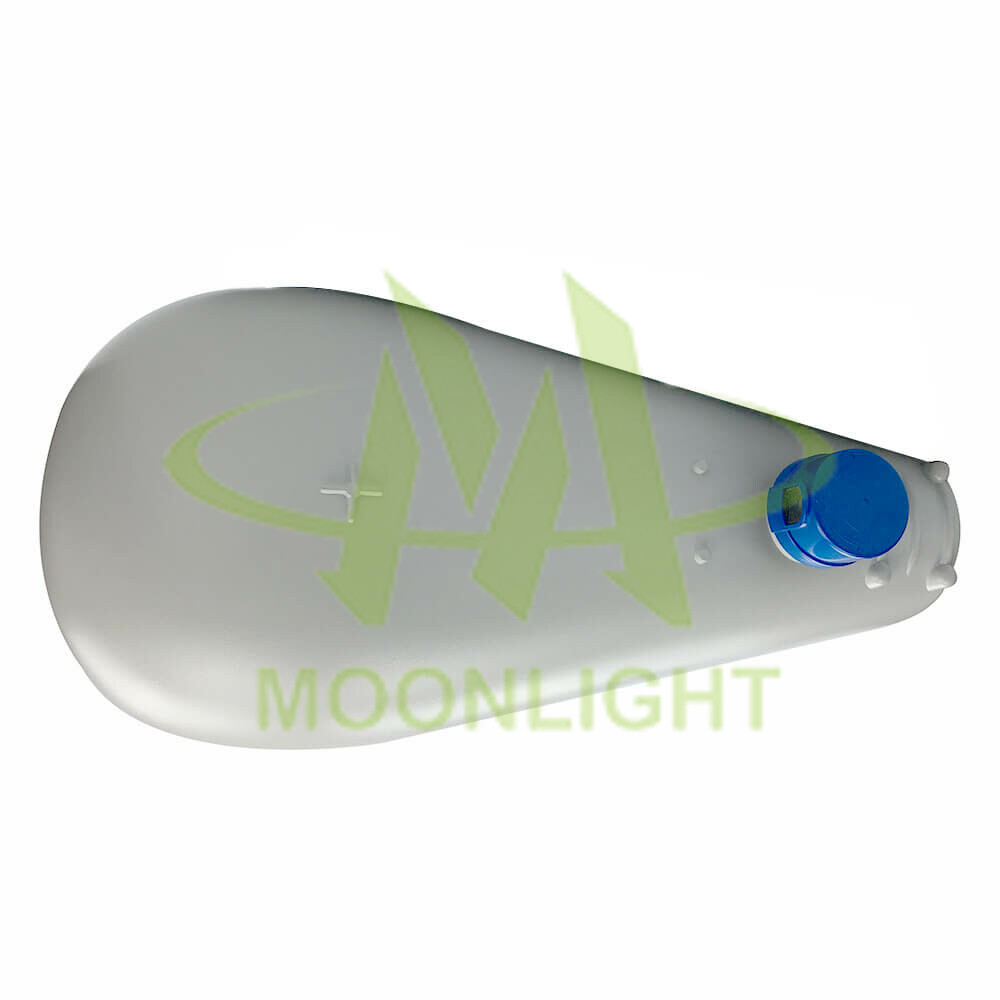

LED Street Light Housing MLT-SLH-JM-II Back View
LED Street Light Housing MLT-SLH-JM-II Back View

Packing Information

Net Weight 4.85kg/PCS
Gross weight 6kg/carton
Quantity 1PCS/ carton
Carton Size 71cm(L)*34cm(W)*18cm(H)

Application

This heavy-duty, modern design linemen friendly and cost-effective LED street light housing fixture is typically used as 90W-120W LED module street lighting fixture. LED street lighting is used extensively in urban settings, along small town downtown main streets, in residential neighborhoods, in commercial districts, public squares, in industrial parks, at interstate highway interchanges, bridges, and rural intersections.
