Brief Introduction

This LED module street light housing fixture MLT-SLH-IM-II is the medium size of LED module street light housing fixture from Moonlight LED street light I series. Modern uniformed LED modules design, precision die-casting molded and superior corrosion resistant coating finish frame with extruded aluminum module as LED lighting engine, make this housing can be used for variety of LED roadway lighting applications.

Feature

  • Durable aluminum alloy die-casting frame with extruded LED modules for heavy-duty outdoor lighting applications.
  • Individual and easy maintenance LED street light module.
  • Plastic electrostatic spraying to resist corrosion, chipping and fading.
  • 4 bolts with steel hardware secures fixture to pole arm.
  • High light transmittance PC lenses as diffuser.
  • Silicon gaskets.
  • Steel bolts for fastening
  • IP65 rated, protect from all dust and harsh weather.
  • Standard Gray finish.
  • Easy to assemble, install and maintain.

Mechanical Dimensions

LED Street Light Housing MLT-SLH-IM-II Mechanical Dimensions

Parameter

Model No. LED Street Light Housing MLT-SLH-IM-II
Dimension of Housing 72.5cm(L)*32.6cm(W)*8.5cm(H)
Fixture Material Die-casting and Extruded Aluminum Alloy
Surface Finish Color Gray or Customized color
Material of Diffuser High Transmittance PC lenses
LED Module Size (275-300)mm(L)* 70cm(W)
Compatibility LEDs Lumileds 3030 or similar
Lens size 236mm(L)*70mm(W)
Lenses Degree 70° × 140°
Recommended LED Power 120W to 150W
Driver Box Dimension 250mm(L)*93mm(W)*70mm(H)
Pole Mounting Accommodates up to Φ65mm pipe
Adjustable Slip Fitter Not Available
Standard Photocell Not Available
IP Rating IP65

Pictures

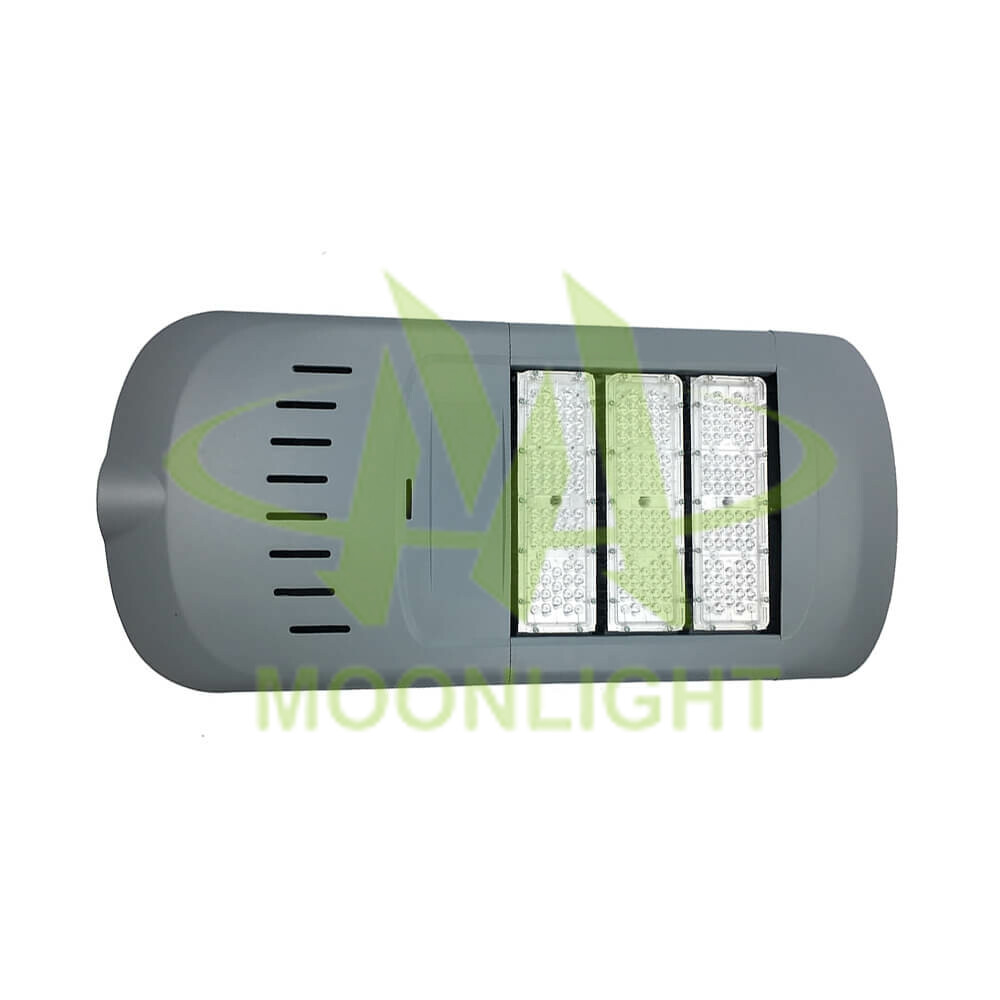

LED Street Light Housing MLT-SLH-IM-II Front View
LED Street Light Housing MLT-SLH-IM-II Front View

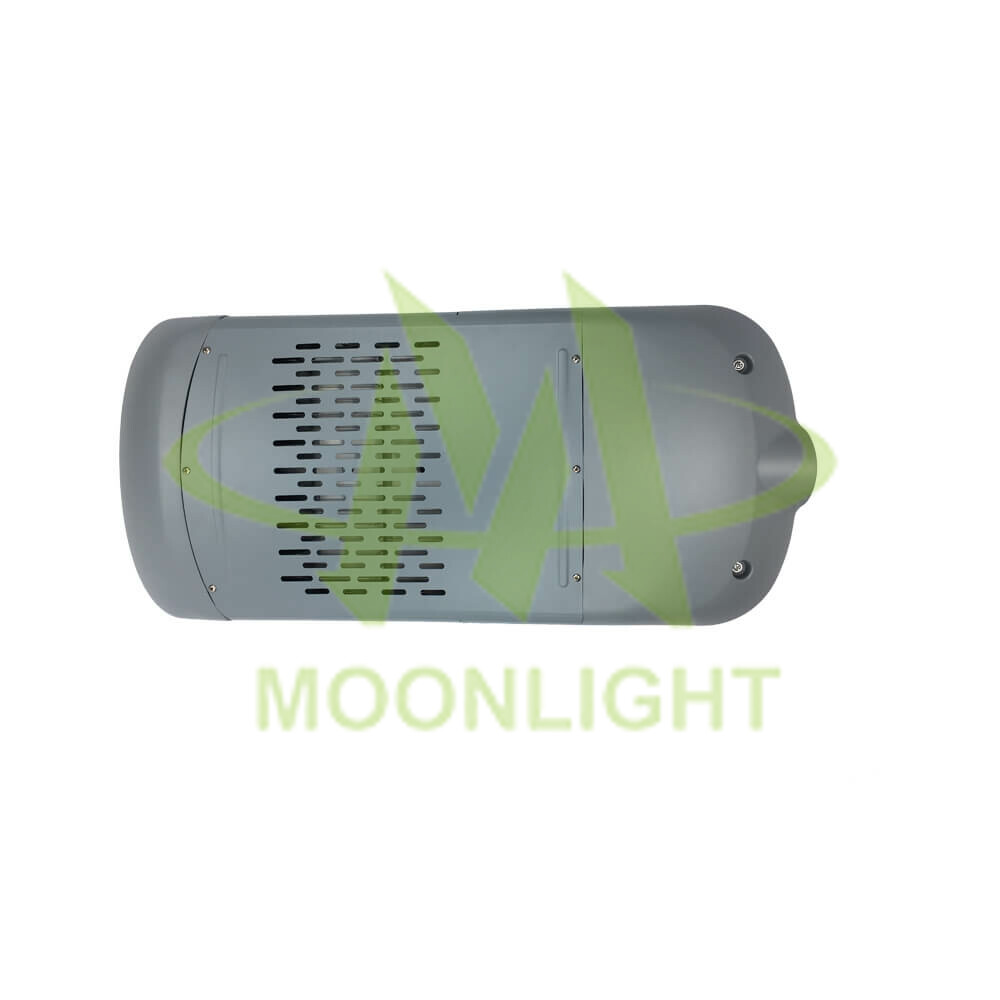

LED Street Light Housing MLT-SLH-IM-II Back View
LED Street Light Housing MLT-SLH-IM-II Back View

Packing Information

Net Weight 6.94kg/PCS
Gross weight 14.68kg/carton
Quantity 2PCS/ carton
Carton Size 73cm(L)*34cm(W)*19.5cm(H)

Application

This heavy-duty, modern design and cost-effective LED street light housing fixture is typically used as 120W-150W LED module street lighting fixture. LED street lighting is used extensively in urban settings, along small town downtown main streets, in residential neighborhoods, in commercial districts, public squares, in industrial parks, at interstate highway interchanges, bridges, and rural intersections.
