LED Street Light Housing MLT-SLH-GM-II

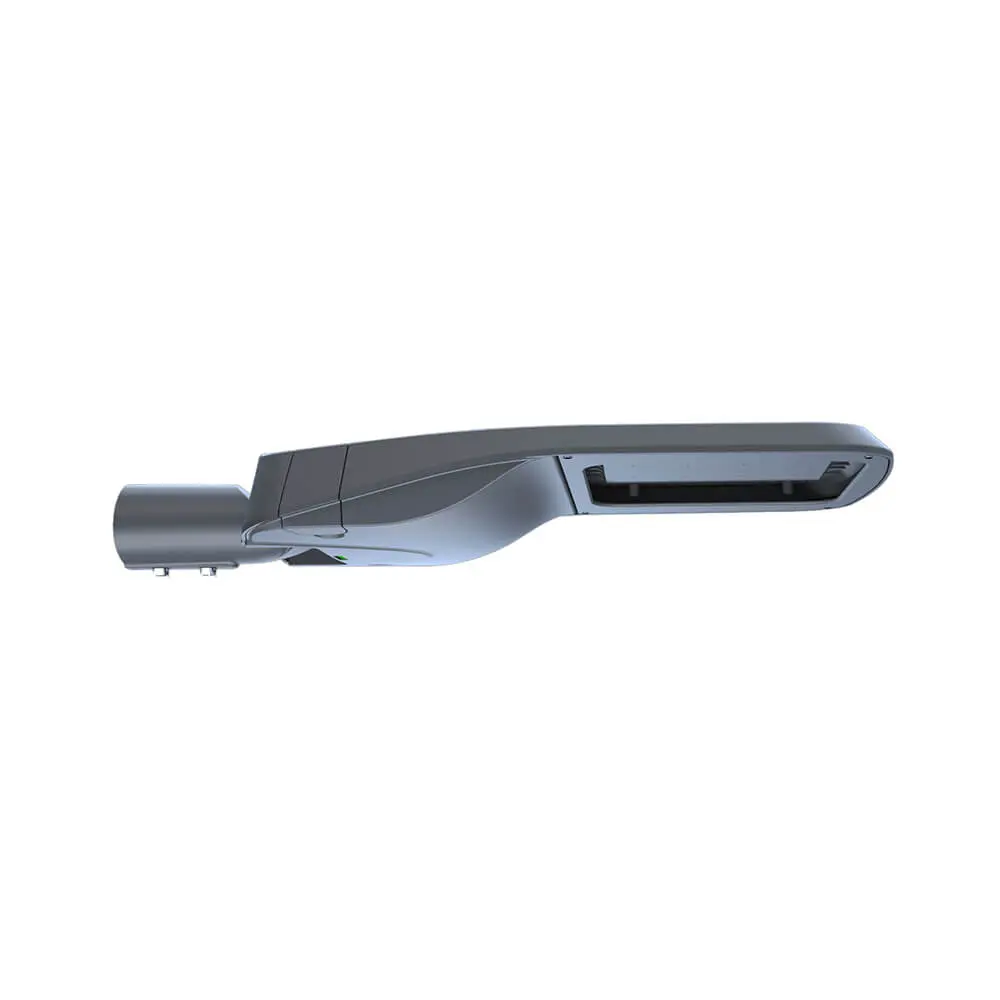

street_light_housing_mlt-slh-gm-II_01

street_light_housing_mlt-slh-gm-II_01

street_light_housing_mlt-slh-gm-II_01

Brief Introduction

This LED street light housing fixture MLT-SLH-GM-II is the large size of SMD LED street light housing fixture from Moonlight LED street light G series. There also one smaller model MLT-SLH-GS-II and one larger model MLT-SLH-GL-II in this series. Modern design, precision die-casting molded and superior corrosion resistant coating finish housing with standard twist lock photocell mounting platform, make this housing can be used for variety of LED roadway lighting applications.

Feature

  • Durable aluminum alloy die-casting LED street light housing for heavy-duty outdoor lighting applications.
  • Ribbon-free and compact design.
  • Easy drainage system.
  • Separate LED light engine and driver box for easy maintenance.
  • Tool-less design for replace the LED driver without any tool.
  • Large driver box complies with variety of drivers and dimming options.
  • Both cover and bottom of the driver box have the GND bosses for security.
  • Plastic electrostatic spraying to resist corrosion, chipping and fading.
  • Adjustable knuckle slip fitter help to adjust the led street light fixture on-site for optimal photometric performance, which make sure that the light distributions, are specifically adapted to the real needs of the area to be lit.
  • Side-entry or post-top mounting. Universal mounting pieces allows precise adjustment on-site.
  • 5mm high light transmittance tempered glass diffuser.
  • Silicon gaskets.
  • SUS304 stainless steel bolts for fastening.
  • The powder coated die-cast clips make it a harmonious overall with the rest of the luminaire.
  • Twist lock photocell mounting platform for lighting control.
  • Quick disconnection terminal block mounting platform for disconnect the power supply for linemen handling security.
  • IP66 rated, protect from all dust and harsh weather.
  • Standard sanded gray finish.
  • Easy to assemble, install and linemen friendly maintain.

Mechanical Dimensions

street_light_housing_mlt-slh-gm-II_02

Parameter

Model No. LED Street Light Housing MLT-SLH-GM-II
Dimension of Housing 69.5cm(L)*29.0cm(W)*10.6cm(H)
Fixture Material Die-casting Aluminum Alloy
Die-casting Aluminum Alloy Weight 3900g
Surface Finish Color Sanded Gray or Customized color
Material of Diffuser High Transmittance Tempered glass
Effective MCPCB Mounting Size 205.5mm(L)*155mm(W)
Compatible Lenses 12PCS 50mm*50mm Lenses
Recommended LED Power 120W to 150W
Driver Box Dimension 245mm(L)*100mm(W)*62mm(H)
Pole Mounting Accommodates up to Φ65mm pipe
Adjustable Slip Fitter -15°to +15°
Standard Photocell Optional
Quick Disconnection Terminal Block Optional
IP Rating IP66

Pictures

street_light_housing_mlt-slh-gm-II_03
street_light_housing_mlt-slh-gm-II_03
street_light_housing_mlt-slh-gm-II_04
street_light_housing_mlt-slh-gm-II_04

Packing Information

Net Weight 5.54kg/PCS
Gross weight 5.92kg/carton
Quantity 1PCS/ carton
Carton Size 72.5cm(L)*35cm(W)*16.5cm(H)

Application

This heavy-duty, modern design and cost-effective LED street light housing fixture is typically used as 120W-150W LED street lighting fixture. LED street lighting is used extensively in urban settings, along small town downtown main streets, in residential neighborhoods, in commercial districts, public squares, in industrial parks, at interstate highway interchanges, bridges, and rural intersections.
