Brief Introduction

This LED street light enclosure fixture MLT-SLH-EM-II is the medium size of SMD LED street light housing fixture from Moonlight LED street light E series. In this street light enclosure family, there is also a larger size named MLT-SLH-EL-II. Modern design, precision die-casting molded and superior corrosion resistant coating finish housing with knuckle adjustable slip fitter, make this housing can be used for variety of LED roadway lighting applications.

Data Sheet

Feature

  • Durable aluminum alloy die-casting LED street light enclosure for heavy-duty outdoor lighting applications.
  • Casting-integral heat sink with fins increased air flow velocity providing maximum passive thermal management.
  • Easy drainage fins system.
  • Separate LED light engine and driver box for easy maintenance.
  • Tool-less design for replace the LED driver without any tool.
  • Large driver box complies with Meanwelll HVG series drivers.
  • Both cover and bottom of the driver box have the GND bosses for security.
  • Plastic electrostatic spraying to resist corrosion, chipping and fading.
  • Adjustable knuckle slip fitter with stainless steel hardware secures fixture to pole arm.
  • 5mm high light transmittance tempered glass diffuser.
  • Silicon gaskets.
  • Stainless steel bolts and clips for fastening
  • IP65 rated, protect from all dust and harsh weather.
  • Standard Gray finish.
  • Easy to assemble, install and linemen friendly maintain.

Mechanical Dimensions

LED Street Light Enclosure MLT-SLH-EM-II Mechanical Dimensions

Parameter

Model No. LED Street Light Enclosure MLT-SLH-EM-II
Dimension of Housing 52.2cm(L)*31.8cm(W)*6.2cm(H)
Fixture Material Die-casting Aluminum Alloy
Surface Finish Color Gray or Customized color
Material of Diffuser High Transmittance Tempered glass
Effective MCPCB Mounting Size 275mm(L)*260mm(W)
Recommended LED Power 80W to 140W
Driver Box Dimension 250mm(L)*150mm(W)*50mm(H)
Pole Mounting Accommodates up to Φ65mm pipe
Adjustable Slip Fitter 0°to +90°
Standard Photocell N/A
IP Rating IP65

Pictures

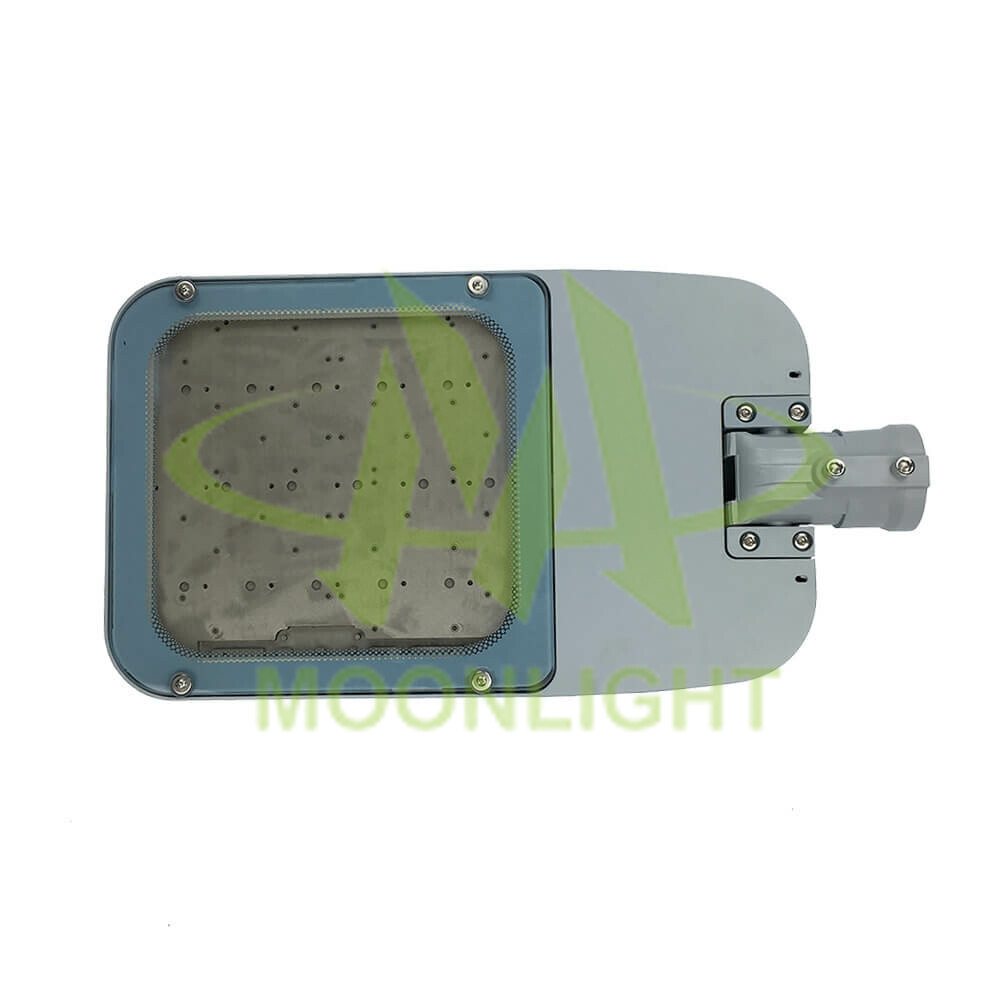

LED Street Light Enclosure MLT-SLH-EM-II Front View
LED Street Light Housing MLT-SLH-EM-II Front View

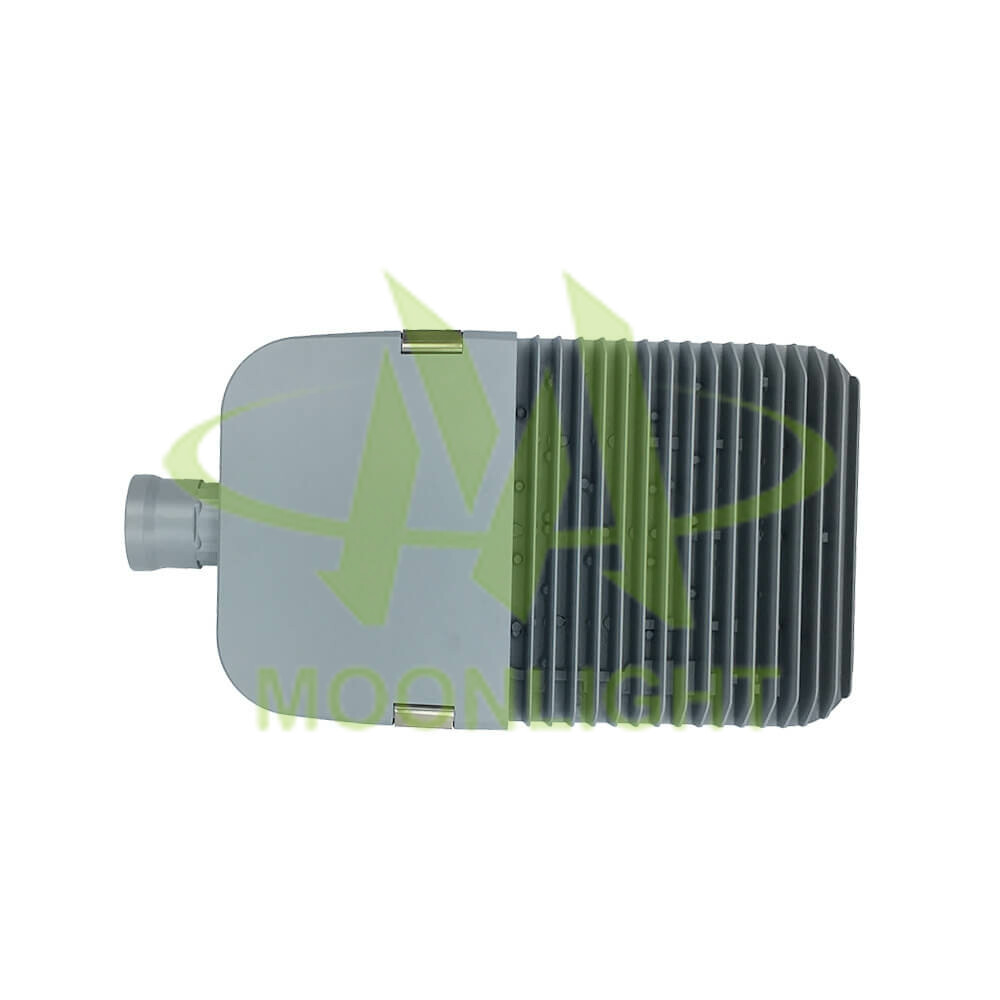

LED Street Light Enclosure MLT-SLH-EM-II Back View
LED Street Light Housing MLT-SLH-EM-II Back View

Packing Information

Net Weight 6.8kg/PCS
Gross weight 8.0kg/carton
Quantity 1PCS/ carton
Carton Size 65.5cm(L)*37.5cm(W)*18cm(H)

Application

This heavy-duty, modern design and cost-effective LED street light enclosure fixture is typically used as 80W-140W LED street lighting fixture. LED street lighting is used extensively in urban settings, along small town downtown main streets, in residential neighborhoods, in commercial districts, public squares, in industrial parks, at interstate highway interchanges, bridges, and rural intersections.
