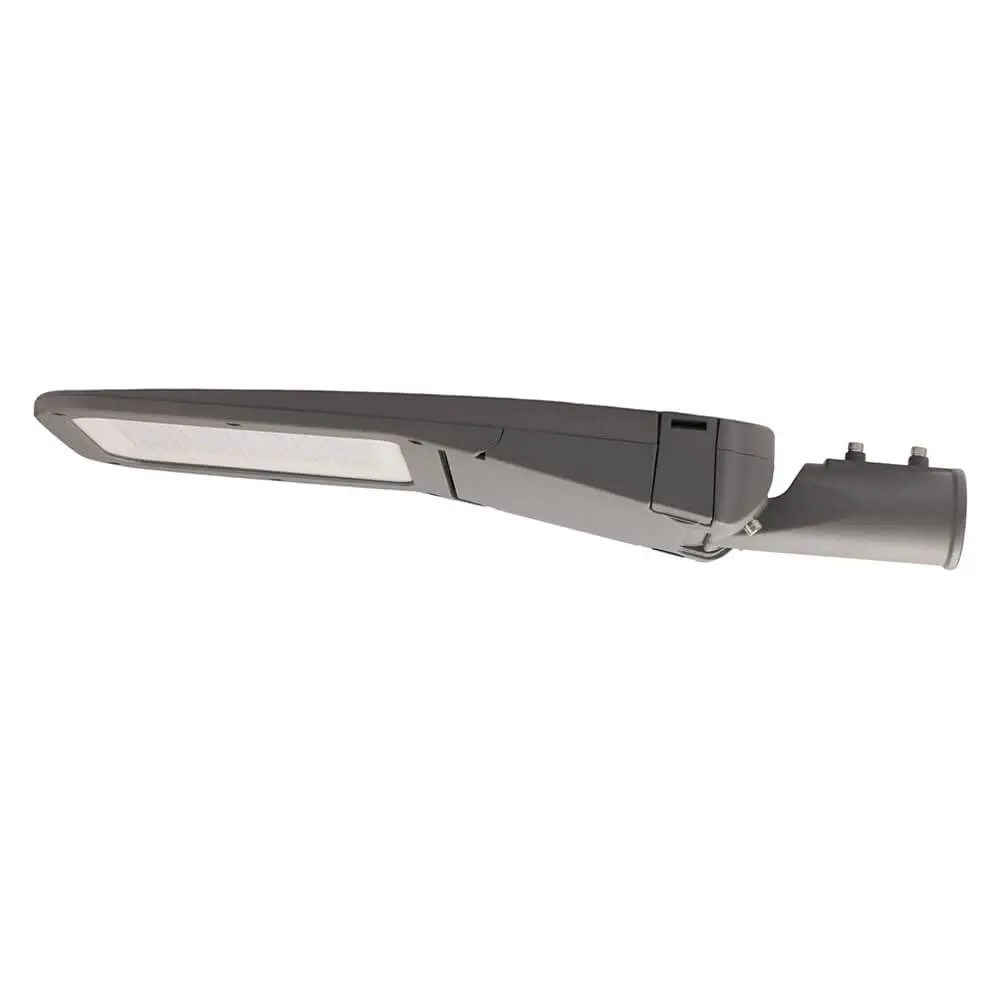

Led Street Light Die-casting Housing MLT-SLH-KM-II

Led Street Light Die-casting Housing MLT-SLH-KM-II

Led Street Light Die-casting Housing MLT-SLH-KM-II

Led Street Light Die-casting Housing MLT-SLH-KM-II

Led Street Light Die-casting Housing MLT-SLH-KM-II

Brief Introduction

This LED street light die-casting housing fixture MLT-SLH-KM-II is the medium size of SMD LED street light housing fixture from Moonlight LED street light K series. There are two smaller LED street light case in this series, and they are MLT-SLH-KS-II and MLT-SLH-KXS-II. Modern design, precision die-casting molded and superior corrosion resistant coating finish housing with standard twist lock photocell mounting platform, make this housing can be used for variety of LED roadway lighting applications.

Feature

  • Durable aluminum alloy led street light die-casting housing for heavy-duty outdoor lighting applications.
  • Ribbon-free and compact design.
  • Separate LED light engine and driver box for easy maintenance.
  • Tool-less design for replace the LED driver without any tool.
  • The bottom of the driver box has the GND bosses for security.
  • Plastic electrostatic spraying to resist corrosion, chipping and fading.
  • Adjustable knuckle slip fitter with SUS304 stainless steel hardware secures fixture to pole arm.
  • Side-entry or post-top mounting. Universal mounting pieces allows precise adjustment on-site.
  • 5mm high light transmittance tempered glass diffuser.
  • Silicon gaskets.
  • SUS304 stainless steel bolts and clips for fastening
  • Standard S6000 socket and twist lock photocell mounting platform for lighting control.
  • Quick disconnection terminal block mounting platform for disconnect the power supply for linemen handling security.
  • IP66 rated, protect from all dust and harsh weather.
  • Standard Gray finish.
  • Easy to assemble, install and linemen friendly maintain.

Mechanical Dimensions

Led Street Light Die-casting Housing MLT-SLH-KM-II Mechanical Dimensions

Parameter

Model No. LED Street Light Die-casting Housing MLT-SLH-KM-II
Dimension of Housing 71.8cm(L)*28.5cm(W)*9.9cm(H)
Fixture Material Die-casting Aluminum Alloy
Die-casting Aluminum Alloy Weight 4600g
Surface Finish Color Gray or Customized color
Material of Diffuser High Transmittance Tempered glass
Effective MCPCB Mounting Size 222.5mm(L)*213mm(W)
Compatible Lenses 12PCS 50mm*50mm Lenses
Recommended LED Power 150W to 180W
Driver Box Dimension 230mm(L)*110mm(W)*50mm(H)
Pole Mounting Accommodates up to Φ65mm pipe
Adjustable Slip Fitter -15°to +15°
Standard Photocell Optional
Quick Disconnection Terminal Block Optional
IP Rating IP66

Pictures

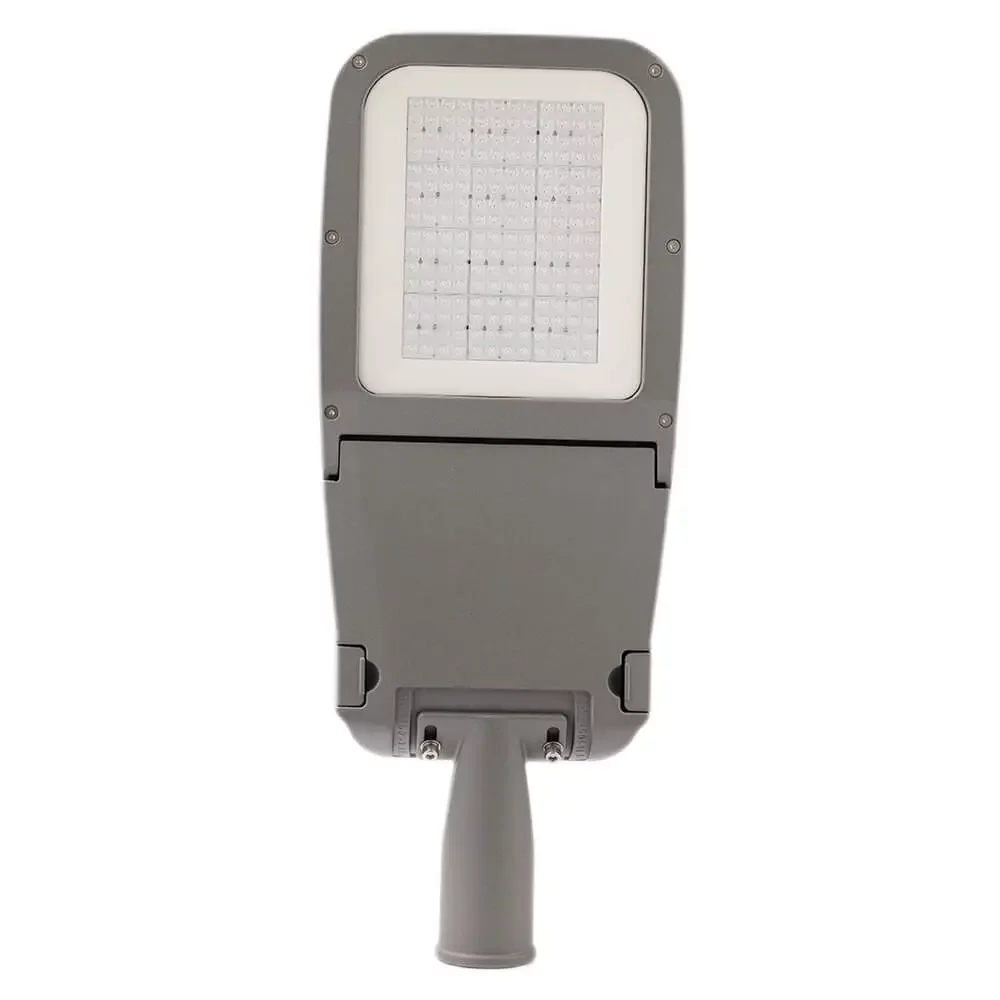

Led Street Light Die-casting Housing MLT-SLH-KM-II Front View
Led Street Light Die-casting Housing MLT-SLH-KM-II Front View

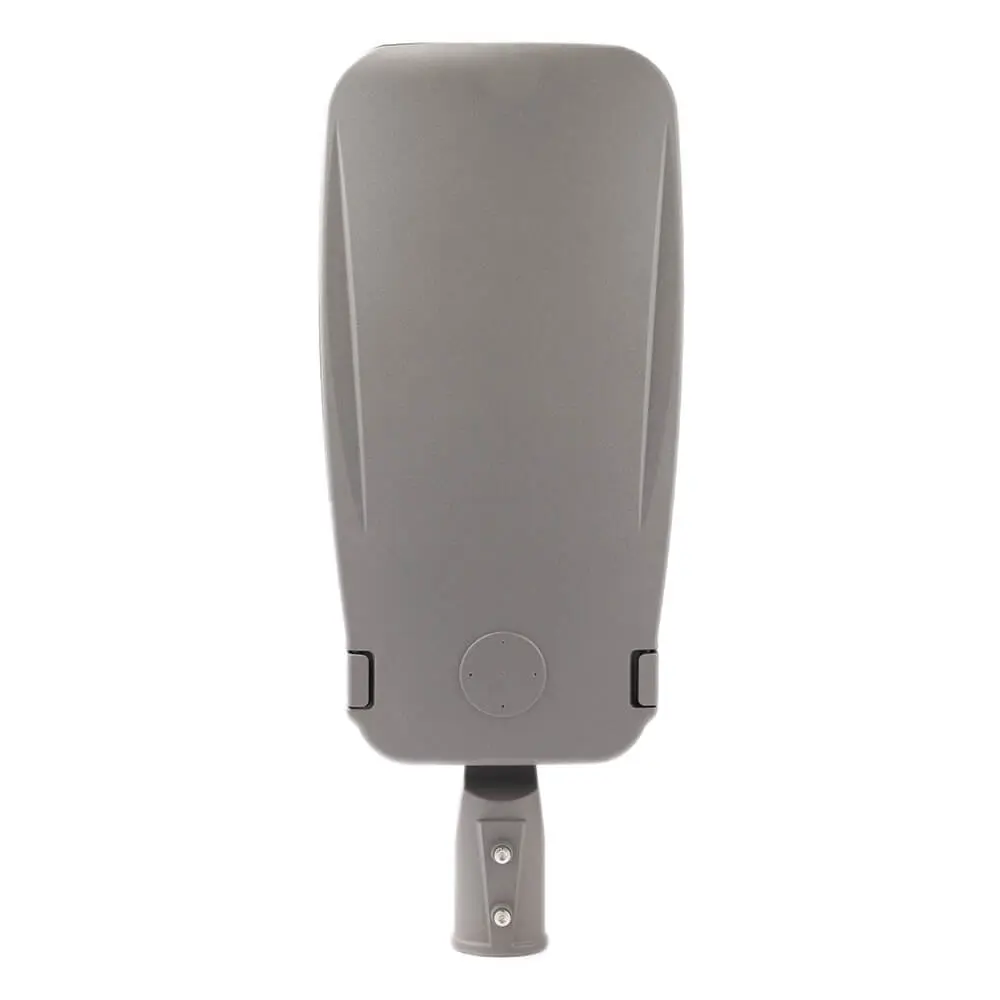

Led Street Light Die-casting Housing MLT-SLH-KM-II Back View
Led Street Light Die-casting Housing MLT-SLH-KM-II Back View

Packing Information

Net Weight 5.80kg/PCS
Gross weight 6.65kg/carton
Quantity 1PCS/ carton
Carton Size 76.5cm(L)*33cm(W)*15cm(H)

Application

This heavy-duty, modern design and cost-effective LED street light housing fixture is typically used as 150W-180W LED street lighting fixture. LED street lighting is used extensively in urban settings, along small town downtown main streets, in residential neighborhoods, in commercial districts, public squares, in industrial parks, at interstate highway interchanges, bridges, and rural intersections.
