LED High Bay Housing MLT-HBH-BS-II

LED High Bay Housing MLT-HBH-BS-II

LED High Bay Housing MLT-HBH-BS-II

LED High Bay Housing MLT-HBH-BS-II

Brief Introduction

This LED high bay housing fixture MLT-HBH-BS-II is the small size of round SMD LED high bay housing fixture from Moonlight LED high bay B series. Modern design, precision die-casting molded and superior corrosion resistant coating finish housing, make this housing can be used for variety of LED commercial and industry lighting applications.

Feature

  • Durable aluminum alloy die-casting housing for heavy-duty lighting applications.
  • Casting-integral heat sink with fins increased air flow velocity providing maximum passive thermal management.
  • Easy drainage fins system.
  • Meanwell HBG series or similar power supplies compatibility.
  • Plastic electrostatic spraying to resist corrosion, chipping and fading.
  • High light transmittance tempered glass or PC Lens.
  • Silicon gaskets.
  • SUS304 stainless steel bolts and hook for fastening
  • IP65 rated, protect from all dust and harsh weather.
  • Standard black finish.
  • Multiple mounting solution for different installation applications.
  • Safety rope is provided for security.
  • Easy to assemble, install and linemen friendly maintain.

Mechanical Dimensions

LED High Bay Housing MLT-HBH-BS-II Mechanical Dimensions

Parameter

Model No. LED High Bay Housing MLT-HBH-BS-II
Dimension of Housing 33cm(φ)*12.2cm(H)
Fixture Material Die-casting Aluminum Alloy
Diffuser Material High Transmittance Tempered glass/PC
Surface Finish Color Black or Customized color
Effective MCPCB Mounting Size 171.6mm(L)*171.6mm(W)
Recommended LED Power 80W to 150W
Driver Compatibility Meanwell HBG Series or Similar
Beam Angle 90°/120°
Mounting Method Hook /Pendant /Bracket Mounting Options

Type of Mounting

LED High Bay Light Mounting Options
LED High Bay Light Mounting Options

Pictures

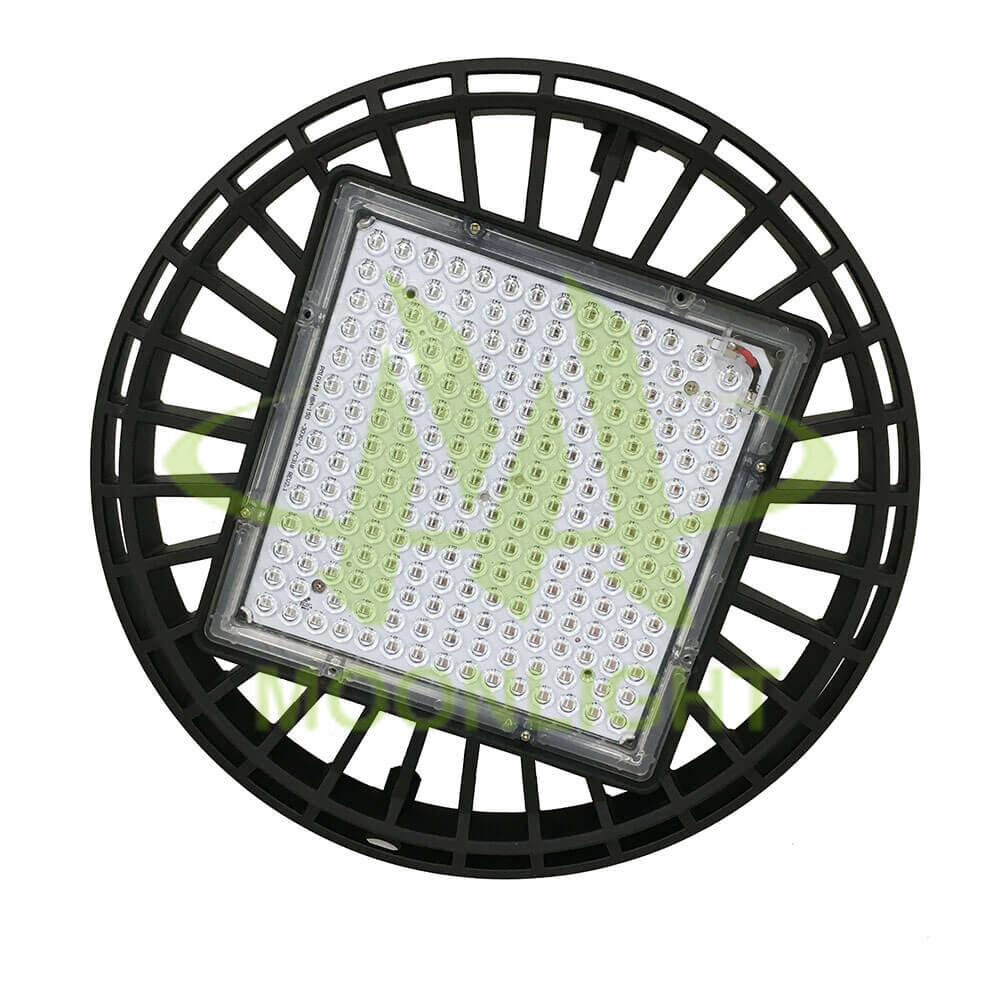

LED High Bay Housing MLT-HBH-BS-II Front View
LED High Bay Housing MLT-HBH-BS-II Front View

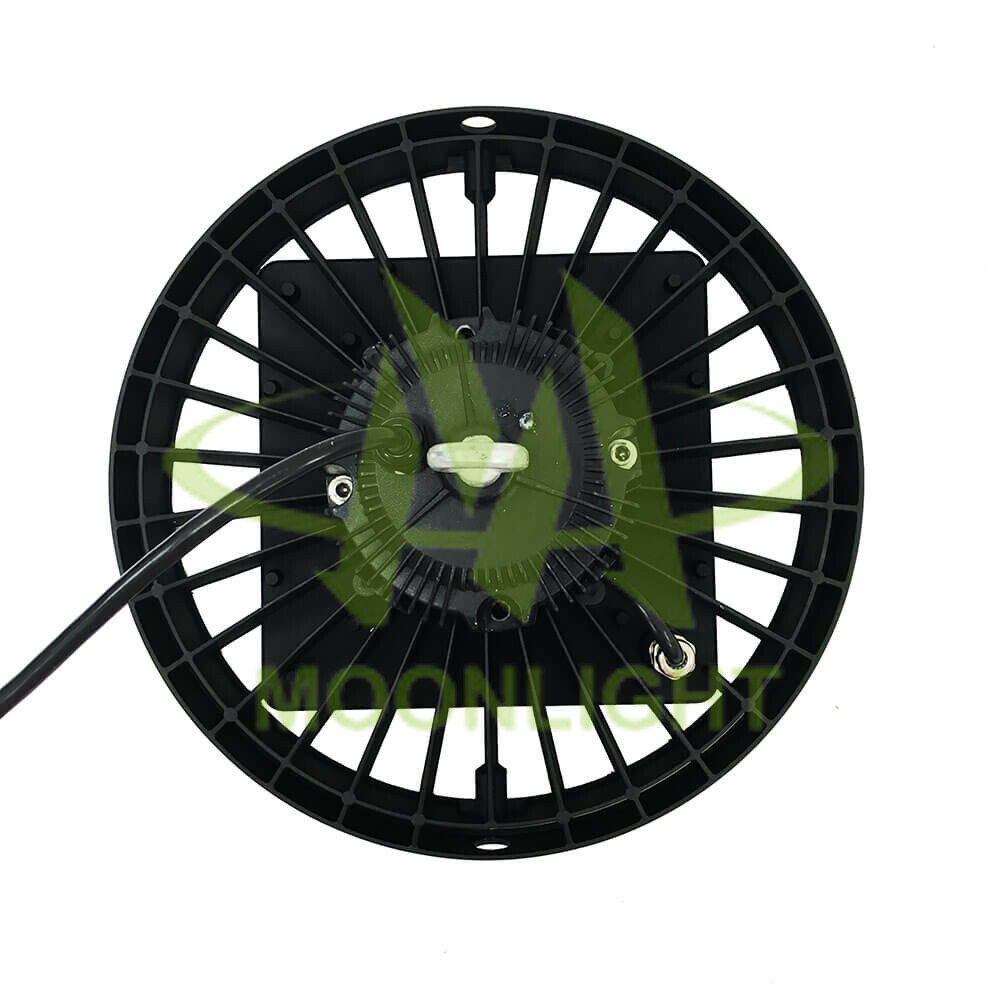

LED High Bay Housing MLT-HBH-BS-II Back View
LED High Bay Housing MLT-HBH-BS-II Back View

Packing Information

Net Weight 2.4kg/PCS
Gross weight 3.3kg/carton
Quantity 1PCS/ carton
Carton Size 38cm(L)*38cm(W)*20cm(H)

Application

This heavy-duty, modern design, energy-efficient and cost-effective LED high bay housing fixture is typically used as 80W-150W LED high bay light. LED high bay lights are specifically designed for taller ceilings and larger areas. They focus light more directly to create powerful illumination at a long range. This makes them perfect for commercial and industrial applications such as supermarkets, exhibition halls, big-box retail stores, sporting venues, manufacturing plants, warehouses, recreation centers, hangars and storage facilities. These LED industry lighting fixtures improve visibility and worker safety while enhancing productivity.
