High Bay Housing MLT-HBH-FS-II

High Bay Housing MLT-HBH-FS-II

High Bay Housing MLT-HBH-FS-II

High Bay Housing MLT-HBH-FS-II

Brief Introduction

This high bay housing MLT-HBH-FS-II is the small size of round SMD LED high bay housing fixture from Moonlight LED high bay F series. In this series, there is a bigger one named LED high bay light cover MLT-HBH-FM-II which is designed for 150W to 200W LED high bay light. Modern design, precision die-casting molded and superior corrosion resistant coating finish housing, make this housing can be used for variety of LED commercial and industry lighting applications. It also have a dural 80° aluminum alloy chinmey for industrial lighting application.

Feature

  • Durable aluminum alloy die-casting high bay housing for heavy-duty lighting applications.
  • Casting-integral heat sink with fins increased air flow velocity providing maximum passive thermal management.
  • Easy drainage fins system.
  • Multiple brand power supplies compatibility.
  • Plastic electrostatic spraying to resist corrosion, chipping and fading.
  • High light transmittance tempered glass.
  • Silicon gaskets.
  • Stainless steel bolts and hook for fastening.
  • IP65 rated, protect from all dust and harsh weather.
  • Standard black finish.
  • Multiple mounting solution for different installation applications.
  • Safety rope is provided for security.
  • Easy to assemble, install and linemen friendly maintain.

Mechanical Dimensions

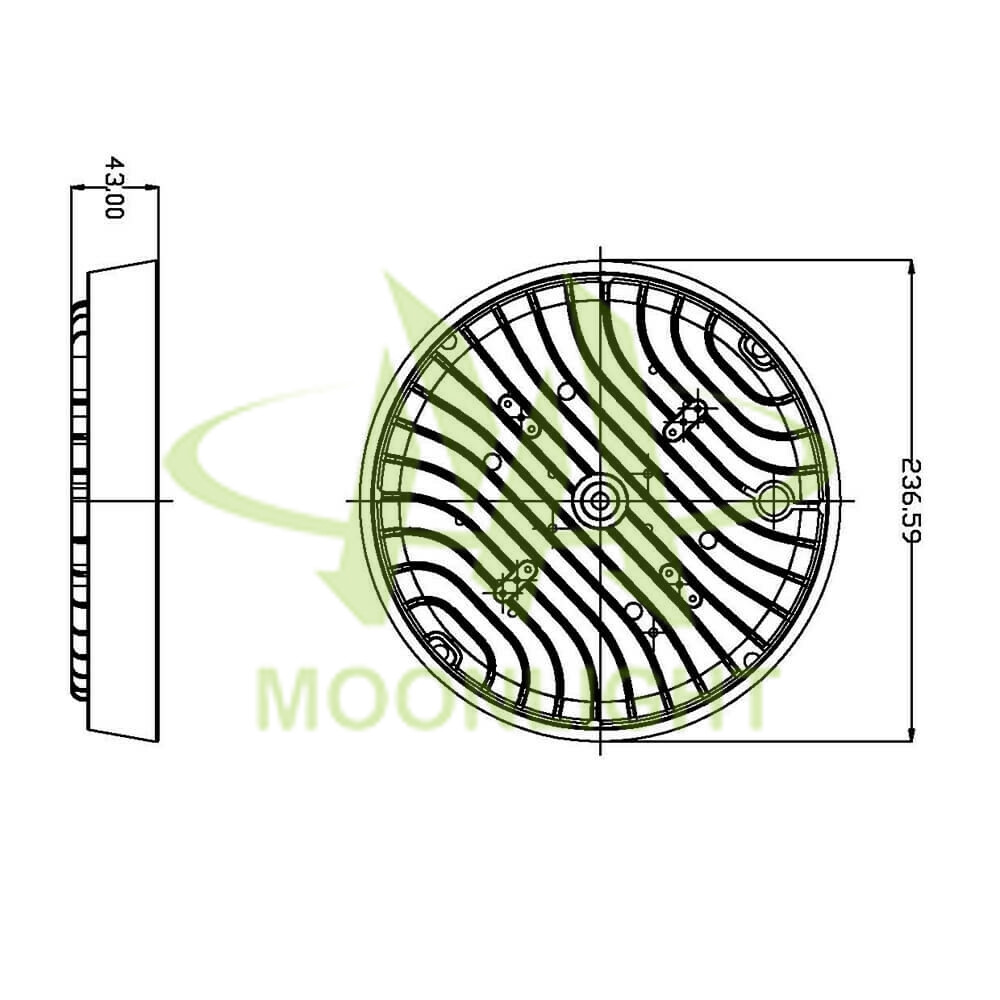

High bay housing MLT-HBH-FS-II Mechanical Dimensions

Parameter

Model No. LED High Bay Housing MLT-HBH-FS-II
Dimension of Housing 23.6cm(φ)*4.3cm(H)
Fixture Material Die-casting Aluminum Alloy
Die-casting Aluminum Alloy Weight 1200g
Diffuser Material High Transmittance Tempered glass/PC
Surface Finish Color Black or Customized color
Effective MCPCB Mounting Size 190mm(Φ)
Recommended LED Power 60W to 100W
Driver Compatibility Multiple Brand
Beam Angle 80°/120°
Mounting Method Hook /Pendant /Bracket Mounting Options

Type of Mounting

LED High Bay Light Mounting Options
LED High Bay Light Mounting Options

Pictures

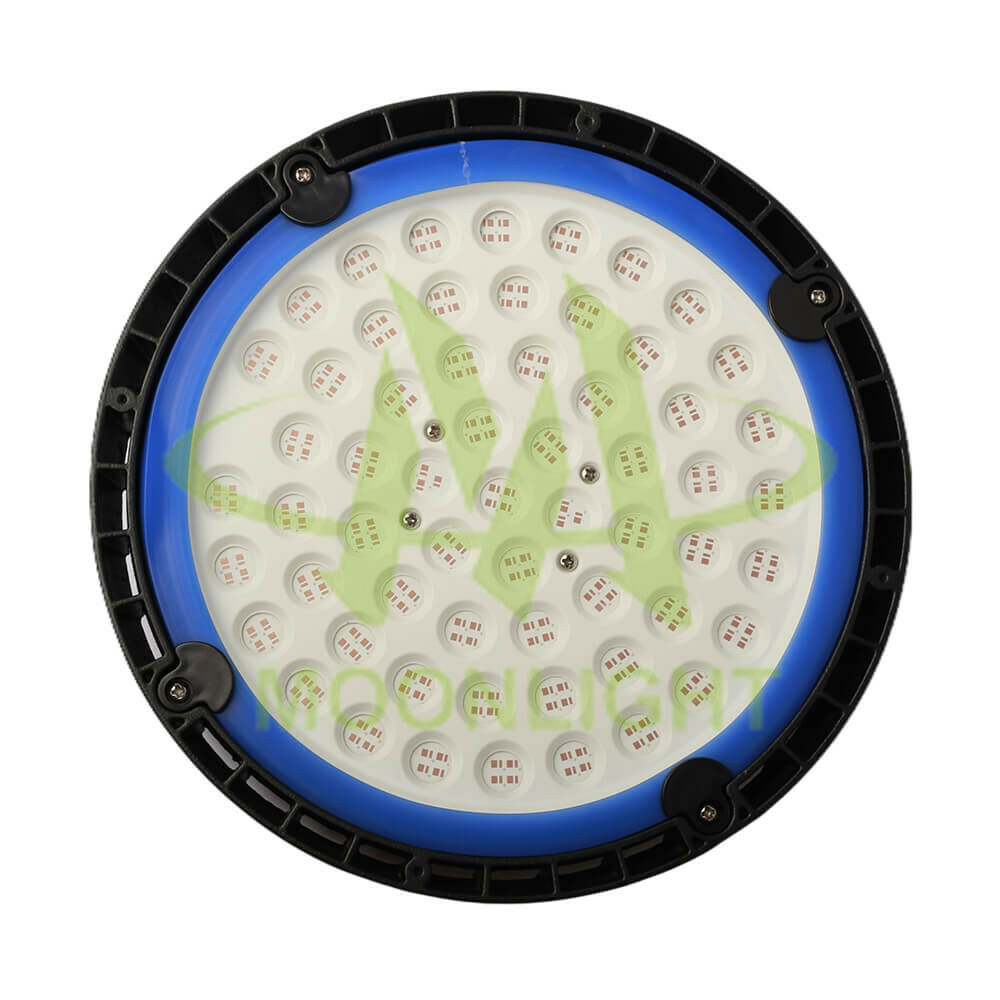

High Bay Housing MLT-HBH-FS-II Front View
High Bay Housing MLT-HBH-FS-II Front View

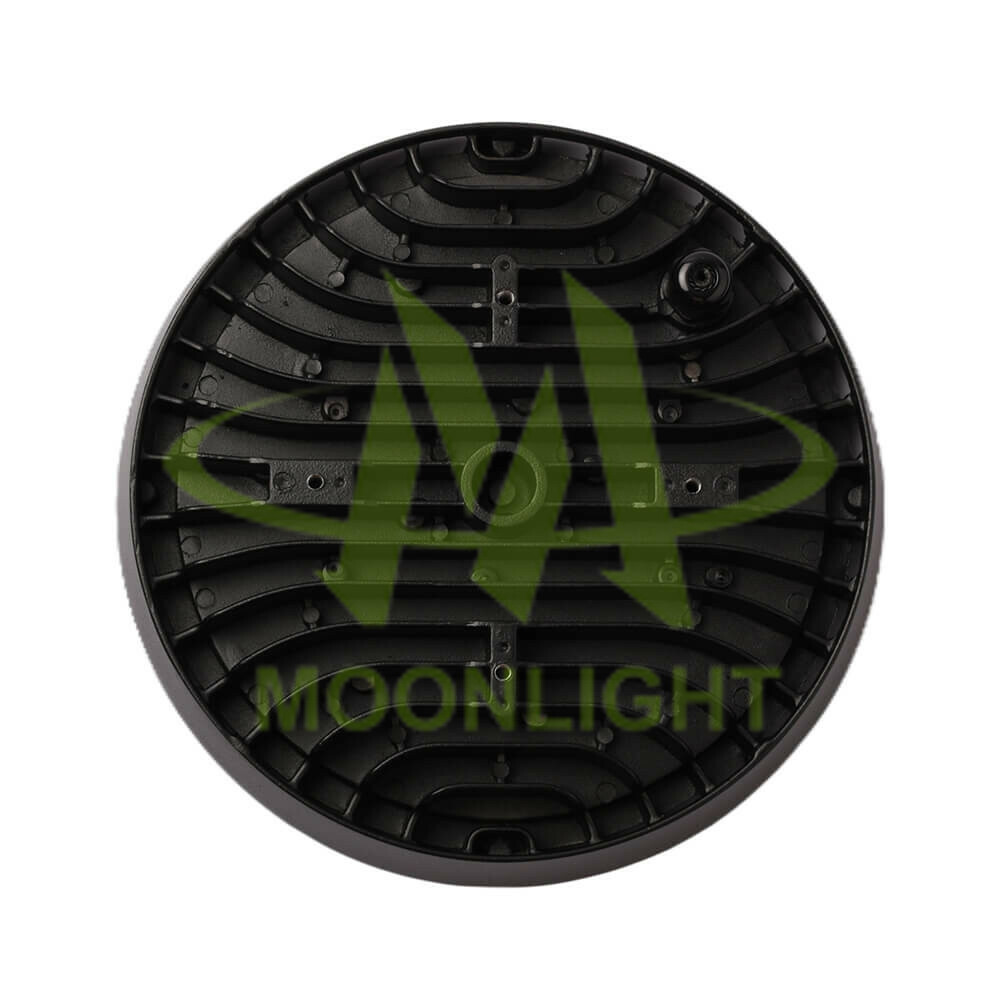

High Bay Housing MLT-HBH-FS-II Back View
High Bay Housing MLT-HBH-FS-II Back View

Application

This heavy-duty, modern design, energy-efficient and cost-effective LED high bay housing fixture is typically used as 60W-100W LED high bay light. LED high bay lights are specifically designed for taller ceilings and larger areas. They focus light more directly to create powerful illumination at a long range. This makes them perfect for commercial and industrial applications such as supermarkets, exhibition halls, big-box retail stores, sporting venues, manufacturing plants, warehouses, recreation centers, hangars and storage facilities. These LED industry lighting fixtures improve visibility and worker safety while enhancing productivity.

Packing Information

Net Weight 1.68kg
Gross weight 8.52kg
Box Size 25cm(L)*25cm(W)*14.5cm(H)
Quantity 4boxes/ carton
Carton Size 53.5cm(L)*27.5cm(W)*32.5cm(H)
