LED Floodlight Housing MLT-FLH-CXXL-II

Flood Light Housing MLT-FLH-CXXL-II

LED Floodlight Housing MLT-FLH-CXXL-II

Flood Light Housing MLT-FLH-CXXL-II

Brief Introduction

This LED flood light housing fixture MLT-FLH-CXXL-II is the largest size of square SMD LED flood light housing fixture from Moonlight LED floodlight C series. In this family, there are other smaller five models, MLT-FLH-CXS-II, MLT-FLH-CS-II, MLT-FLH-CM-II, MLT-FLH-CL-II and MLT-FLH-CXL-II, from 10W to 150W. An adjustable mounting bracket allows you to direct illumination where it’s needed. Modern design, precision die-casting molded and superior corrosion resistant coating finish housing, make this housing can be used for variety of commercial and institutional LED lighting applications.


  • Durable aluminum alloy die-casting flood light housing for heavy-duty outdoor flood lighting applications.
  • Casting-integral heat sink with fins increased air flow velocity providing maximum passive thermal management.
  • Easy drainage fins system.
  • Adjustable mounting bracket for direction changing.
  • LED driver can be mounted in direct contact with the casting to promote low operating temperature and long life.
  • Plastic electrostatic spraying to resist corrosion, chipping and fading.
  • High light transmittance tempered glass.
  • Silicon gaskets.
  • Stainless steel bolts and for fastening
  • IP65 rated, protect from all dust and harsh weather.
  • Standard black finish.
  • Multiple mounting solution for different installation applications.
  • Easy to assemble, install and linemen friendly maintain.

Mechanical Dimensions

Flood Light Housing MLT-FLH-CXXL-II Mechanical Dimensions


Model No. LED Flood light Housing MLT-FLH-CXXL-II
Dimension of Housing 48.8cm(L)*36.1cm(W)*6cm(H)
Fixture Material Die-casting Aluminum Alloy
Diffuser Material High Transmittance Tempered Glass
Surface Finish Color Black or Customized color
Effective MCPCB Mounting Size 250mm(L)*219mm(W)(W)
Recommended LED Power 180W-200W
Beam Angle 120°
Mounting Method Ceiling/Wall/Pedastal/ Mounting Options

Pictures of Flood Light Housing MLT-FLH-CXXL-II

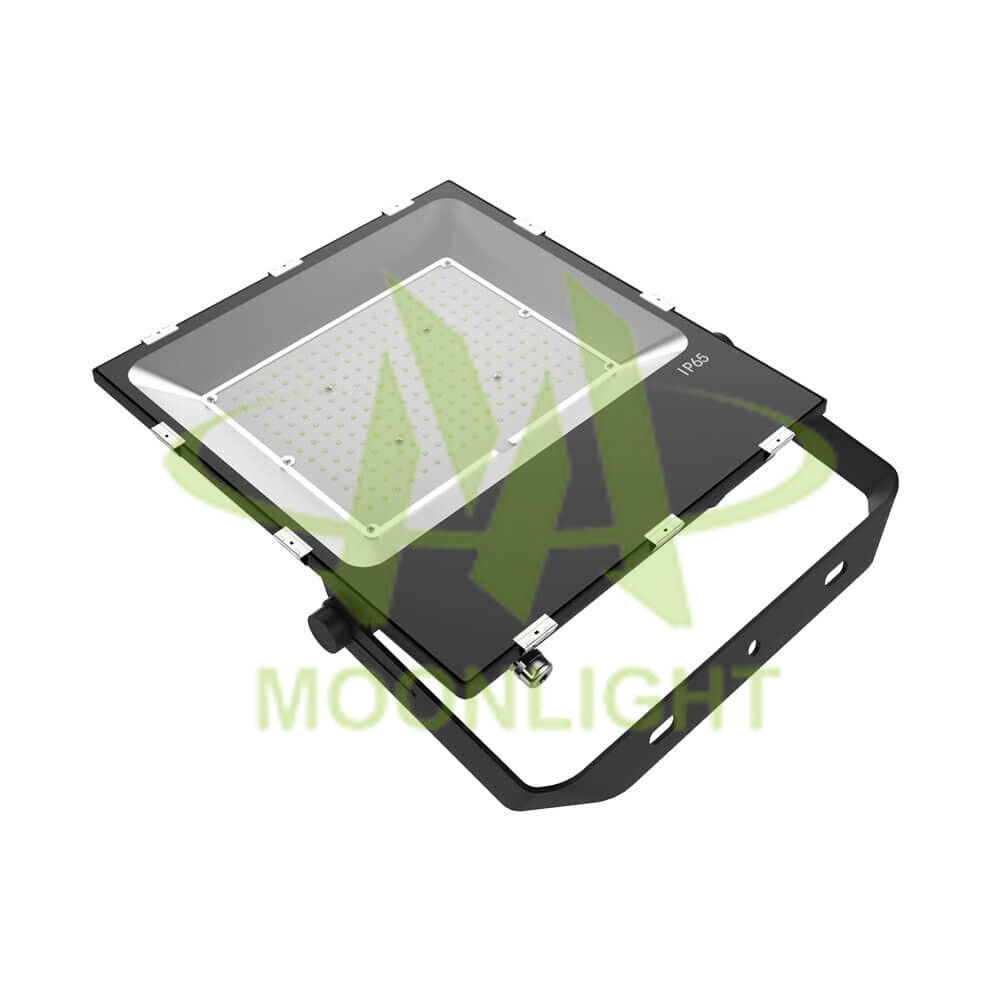

Flood Light Housing MLT-FLH-CXXL-II Front View
LED Floodlight Housing MLT-FLH-CXXL-II Front View

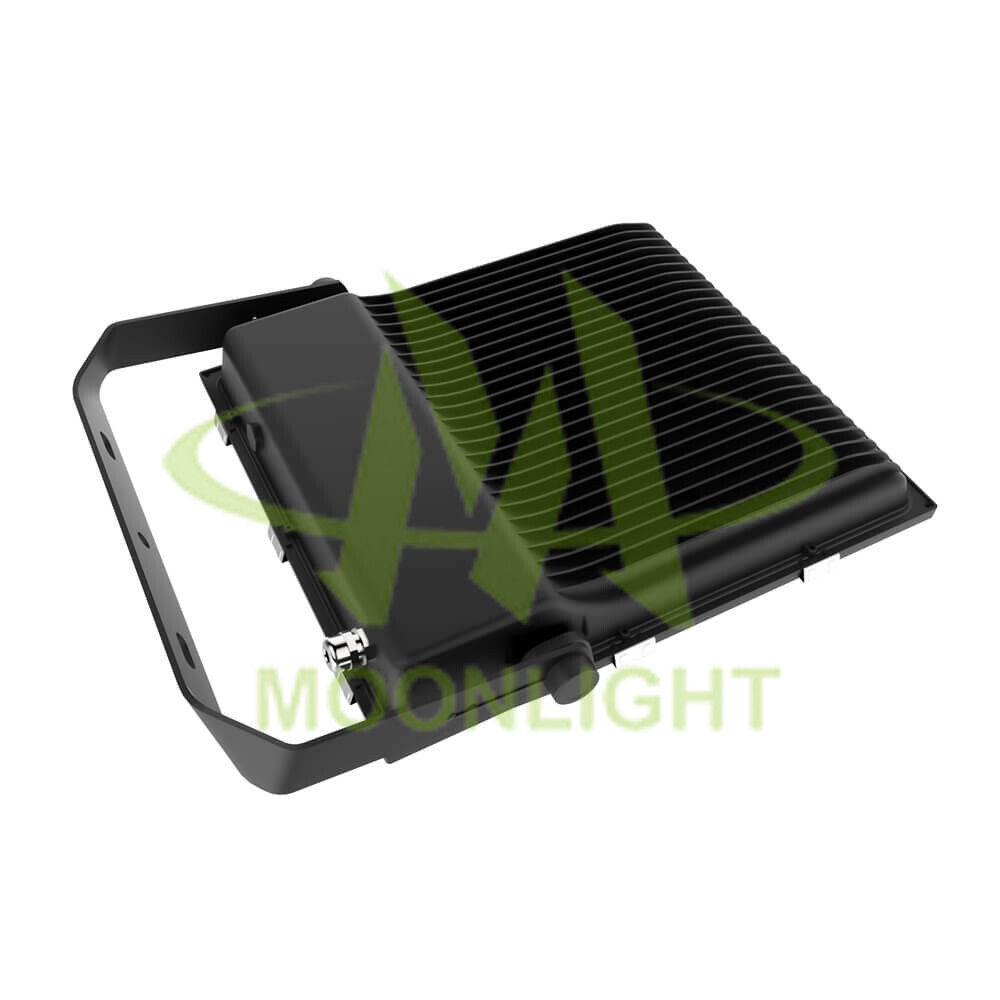

Flood Light Housing MLT-FLH-CXXL-II Back View
LED Floodlight Housing MLT-FLH-CXXL-II Back View

Packing Information

Net Weight 4.34kg/PCS
Gross weight 5.2kg/Carton
Quantity 1PCS/Carton
Carton Size 55cm(L)*43cm(W)*13cm(H)


This heavy-duty, modern design, energy-efficient and cost-effective LED flood light housing fixture is typically used as 180W-200W LED flood light. LED flood lights are specifically designed for various kinds of places, including office buildings, monuments, facades, columns, flag poles, bridges, commercial, mixed retail, apartments, schools, campuses, stadiums, squares, billboards, parking lots, building exterior wall, etc. They focus light more directly to create powerful illumination at a long range. This makes them perfect for outdoor lighting applications such as LED landscape lighting, statue lighting, architectural lighting, LED sign lighting, building facade lighting, tree uplighting, wall wash lighting, outdoor accent lighting, and garden lighting.
